    SC UPC SC APC Fiber Optic Cable Single Mode Single Core With Connector

    Ask Lasest Price
    Model Number : SC/UPC~SC/APC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

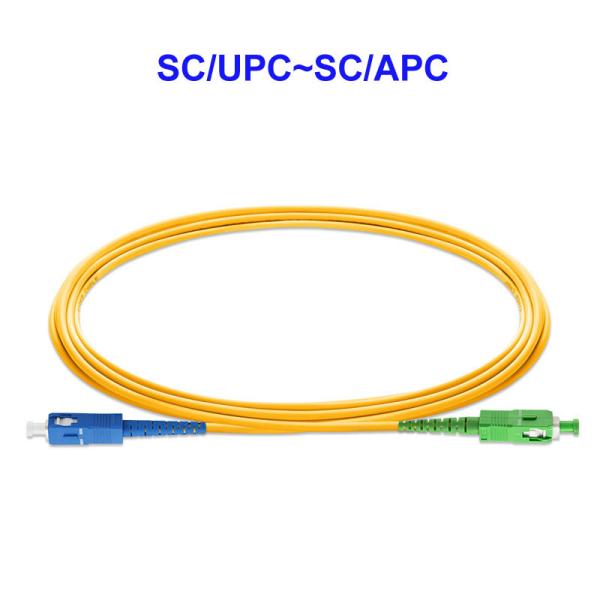

    SC UPC SC APC Fiber Optic Cable Single Mode Single Core With Connector

    Fiber Optic Patch Cord Cable SC UPC SC APC Single-Mode Single-Core OS2 Pigtail


    Prodcuct Parameters
    Interface model:SC/APC~SC/UPCMode:single-mode
    Insertion loss:≤0.3dBNumber of cores:SX
    Return loss:≥55dBFerrule type:Class A ceramic ferrule
    Reliability:≤0.2dBOperating temperature:'-40to +85
    Repeatability:≤0.1dBFiber type:OS2
    Tensile strength:45KGOuter sheath material:PVC(default),LSZH,OFNP
    Tensile strength:≥200NTest wavelength:1310nm~1550nm
    Mating times:≥1000timesCable outer length:0.9mm,2.0mm(default)3.0mm
    Minimum bending radius:38mmOptical fiber specifications:9/125µm

    Offer OEM/ODM Service
    1Connector ASCFCLCST...
    2Grinding type APC,UPC,APC
    3Connector BSCFCLCST...
    4Grinding type BPC,UPC,APC
    5Fiber diameter0.9MM,2.0MM,3.0MM...
    6Fiber length1M,2M,3M,5M,10M,15M,20M,30M,50M,100M...
    7Outer sheath materialPVC,LSZH,OFNP
    8Transmission modeSM9/125-OS2, MM62.5/125-OM1,MM50/125-OM2,MM50/125-
    OM3,MM50/125-OM4...
    9Number of working coresSX, DX
    10Fiber typeG652D,G657A1,G657A2...

    ItemTest ConditionsSMMM
    Optical propertiesInsertion lossupcSM:1310-1550nm≤0.2dB≤0.3dB
    MM:850-1300nm
    apc1310-1550nm≤0.3dB
    Return lossupcSM:1310-1550nm≥55dB≥35dB
    MM:850-1300nm
    apc1310-1550nm≥65dB
    Mechanical propertiesImpact testHeight 1.8,8times<0.1dB<0.1dB
    Vibration test10~60HZ,1mmFull amplitude
    Plug life≥1000times
    tensile strength>100N
    Pressure test45kg
    Environmental characteristicsHigh and low temperature cycle test-25to +70 2cycles<0.2dB<0.2dB
    High temperature test+80,2hours
    Low temperature test-40,2hours
    Warm test+4090~95%RH,2hours
