    SC FC LC ST Single And Multimode Fiber Optic Cable Single Core Dual Core

    Ask Lasest Price
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 80000pcs/week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    SC FC LC ST Single And Multimode Fiber Optic Cable Single Core Dual Core

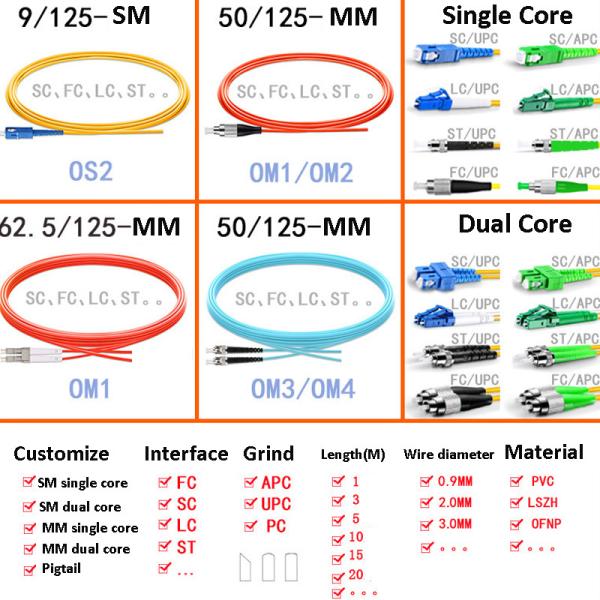

    Optical fiber pigtail SC/FC/LC/ST single multimode single and dual core Carrier-grade A/UPC pigtail customization


    Prodcuct Parameters
    Interface model:SC,FC,LC,ST...Mode:Multi-mode, Single mode
    Insertion loss:≤0.3dBNumber of cores:DX,SX
    Return loss:≥35dB(MM), ≥55dB(SM)Ferrule type:Class A ceramic ferrule
    Reliability:≤0.2dBOperating temperature:-40 85
    Repeatability:≤0.1dBFiber type:OS2,OM1,OM2,OM3,OM4
    Tensile strength:45KGOuter sheath material:PVC,LSZH,OFNP
    Tensile strength:≥200NTest wavelength:850nm~1300nm(MM)
    1310nm~1550nm(SM)
    Mating times:≥1000timesCable outer length:0.9mm,2.0mm(default),3.0mm
    Minimum bending radius:38mmOptical fiber specifications:9/125µm,50/125µm,62.5/125µm


    OEM/ODM Accepted

    List No.ItemModelTest requirementsSMMM
    PCUPCAPCPCUPC
    1ILLC/SC/FC/ST/MU/E2000(Connect with standard plug and standard adapter)
    100%test
    ≤0.3≤0.3≤0.35≤0.3≤0.3
    2RLLC/SC/FC/ST/MU/E2000(Connect with standard plug and standard adapter)
    10% sampling rate
    ≥50dB≥50dB≥60dB≥25dB
    Field connector, Cold splice(Connect with standard plug and standard adapter)Field connector:Embedded:UPC≥40dB,APC≥50dB
    Hot melt type:UPC≥50dB,APC≥60dB
    Cold splice:≥40dB
    33D pass rateLC/SC/FC/ST/MU/E2000Physical inspection≥85%
    4End face standardLC/SC/FC/ST/MU/E2000Physical inspectionNo defects in area A
    Allow zone B ≤1μm scratches, ≤2μm spots, and the total number of scratches plus spots is less than 5.
    Allow C zone ≤2μm scratches, ≤2μm spots, unlimited number, ≤3μm aprons
    No defects in area A
    Allow zone B ≤2μm scratches, ≤3μm spots, and the total number of scratches plus spots is less than 5.
    Allow C zone ≤3μm scratches, ≤3μm spots, unlimited number, ≤5μm aprons
    5Appearance requirementsField connectors, cold spice, adapters, fiber optic connectorsVisual inspection (refer to swatches and sealing samples)Product appearance and corresponding design, manufacturing requirements are everywhere: the appearance should be smooth, clean, free of oil, burrs, no scars and cracks, bright color, good consistency, and the components must be tight and flat; the appearance of the optical cable should be smooth and bright. No impurity, no damage, clear printing, color conforms to product requirements
    6Material requirementsadaptersPhysical inspectionThe adaptor should use ceramic sleeves, the outer shell of the adaptor and other plastic parts should be flame-retardant, and the metal material should use HPb59-1 copper
    7Tensile test {pigtail (cable) or connector with fiber below Φ1.0mm is not applicable, adapter is not applicable}MTP/MPOTest conditions: A) Load: nN: B) Load time: 10 minutes: C) Load rate: 50N/min<rate<250N/minute; D) Distance from the point of load to the plug: L=22~28CM.
    Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.1dB (MU<0.1dB, MTP/MPO<0.3dB) Return loss change <5dB
    ≥50
    FC/SC/E2000≥50
    MU/LC≥70
    LC≥90
    Leather cable≥50
    Hot melt type≥40(Leather cable, 2.0 soft optical cable)
    ≥50(3.0 soft optical cable)
    Embedded type≥30(Leather cable, 2.0 soft optical cable)
    ≥50(3.0 soft optical cable)
    Cold splice≥4(0.125,0.25 optic fiber)
    ≥10N(0.9 optical cable)
    ≥30N(Leather cable)
    8Tensile strength of adapter locking mechanismSCTest conditions: A) Load: nN: B) Load time: 10 minutes (MU load 1 minute); C) Load rate: 50N/minute; <speed<250N/minute; D) Distance from the point of load to the plug: L =22~28cm.
    Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.2dB, Return loss change <5dB
    ≥50
    MPO
    LC≥80
    MU
