APC UPC Bundled Fiber Optic Pigtail 12 Core Optical Fiber Cable

Ask Lasest Price
Brand Name :	Factory Supplying OEM/ODM
Model Number :	APC/UPC Pigtail G652D
Certification :	CE
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	80000Pieces per Day
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

APC UPC Bundled Fiber Optic Pigtail 12 Core Optical Fiber Cable

APC/UPC Bundled Pigtail G652D 12 Core Single Mode Optical Fiber Pigtail customizable length New High quality

Description:

Good quality "head": the Optical fiber connector adopts ABS/PBT environmentallly friendly plastic parts, metal parts such as aluminum oxide and oxygen-free copper/stainless steel/zinc alloy.

Good Quality "core": the Optical fiber jumper adopts the core of major brands such as Coring, YOFC and Fiberhome.

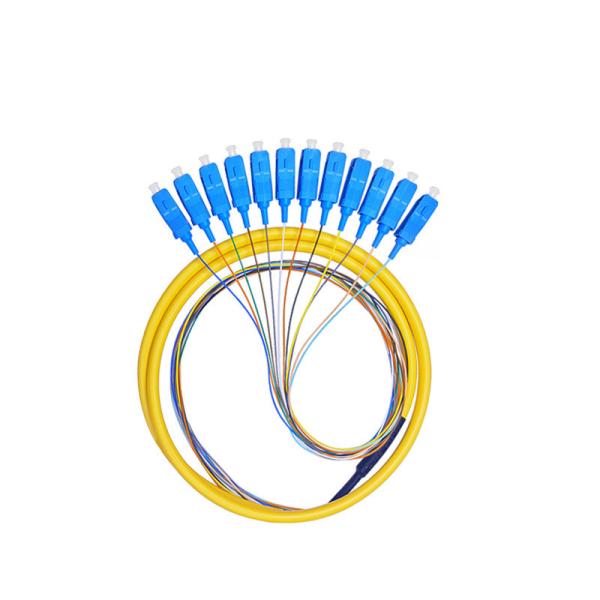

Product Picture:

APC UPC Bundled Fiber Optic Pigtail 12 Core Optical Fiber Cable

Quick Specs:

Prodcuct Parameters
Interface model:SC-	Product Name:12-core bundle pigtail
Operating temperature:'-40℃to +85℃	Optical cable outer diameter:3mm
Interchangeability:≤0.2dB	Fiber attenuation:＜1dB
Mating times:≥1000times	Ferrule type:Class A ceramic ferrule
Test wavelength:1310nm~1550nm	Tensile strength:70N
Tensile strength:≥200N	Vibration test:＜0.1dB

Product Profile:

Offer OEM/ODM Service:

List No.	Item	Model	Test requirements	SM			MM
				PC	UPC	APC	PC	UPC
1	IL	LC/SC/FC/ST/MU/E2000	(Connect with standard plug and standard adapter) 100%test	≤0.3	≤0.3	≤0.35	≤0.3	≤0.3
2	RL	LC/SC/FC/ST/MU/E2000	(Connect with standard plug and standard adapter) 10% sampling rate	≥50dB	≥50dB	≥60dB	≥25dB
		Field connector, Cold splice	(Connect with standard plug and standard adapter)	Field connector:Embedded:UPC≥40dB,APC≥50dB Hot melt type:UPC≥50dB,APC≥60dB Cold splice:≥40dB
3	3D pass rate	LC/SC/FC/ST/MU/E2000	Physical inspection	≥85%
4	End face standard	LC/SC/FC/ST/MU/E2000	Physical inspection	No defects in area A Allow zone B ≤1μm scratches, ≤2μm spots, and the total number of scratches plus spots is less than 5. Allow C zone ≤2μm scratches, ≤2μm spots, unlimited number, ≤3μm aprons			No defects in area A Allow zone B ≤2μm scratches, ≤3μm spots, and the total number of scratches plus spots is less than 5. Allow C zone ≤3μm scratches, ≤3μm spots, unlimited number, ≤5μm aprons
5	Appearance requirements	Field connectors, cold spice, adapters, fiber optic connectors	Visual inspection (refer to swatches and sealing samples)	Product appearance and corresponding design, manufacturing requirements are everywhere: the appearance should be smooth, clean, free of oil, burrs, no scars and cracks, bright color, good consistency, and the components must be tight and flat; the appearance of the optical cable should be smooth and bright. No impurity, no damage, clear printing, color conforms to product requirements
6	Material requirements	adapters	Physical inspection	The adaptor should use ceramic sleeves, the outer shell of the adaptor and other plastic parts should be flame-retardant, and the metal material should use HPb59-1 copper
7	Tensile test {pigtail (cable) or connector with fiber below Φ1.0mm is not applicable, adapter is not applicable}	MTP/MPO	Test conditions: A) Load: nN: B) Load time: 10 minutes: C) Load rate: 50N/min<rate<250N/minute; D) Distance from the point of load to the plug: L=22~28CM. Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.1dB (MU<0.1dB, MTP/MPO<0.3dB) Return loss change <5dB	≥50
		FC/SC/E2000		≥50
		MU/LC		≥70
		LC		≥90
		Leather cable		≥50
		Hot melt type		≥40(Leather cable, 2.0 soft optical cable)
				≥50(3.0 soft optical cable)
		Embedded type		≥30(Leather cable, 2.0 soft optical cable)
				≥50(3.0 soft optical cable)
		Cold splice		≥4(0.125,0.25 optic fiber)
				≥10N(0.9 optical cable)
				≥30N(Leather cable)
8	Tensile strength of adapter locking mechanism	SC	Test conditions: A) Load: nN: B) Load time: 10 minutes (MU load 1 minute); C) Load rate: 50N/minute; <speed<250N/minute; D) Distance from the point of load to the plug: L =22~28cm. Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.2dB, Return loss change <5dB	≥50
		MPO
		LC		≥80
		MU

Applications:

Suitable for fiber-optic communication systems, Fiber-to-the-home, fiber optic data transmission, CATV, LAN, Optical test equipment.

Product connector introduction:

Common Connectors:

About US:

1. Brand new.
2. OEM/ODM is available.
3. High-quality 100% through quality test and aging test.
4. Factory Supplying, Professional manufacturer, about 10 years experience in products.
5. 24 hours service for you, solve your problem quickly.
